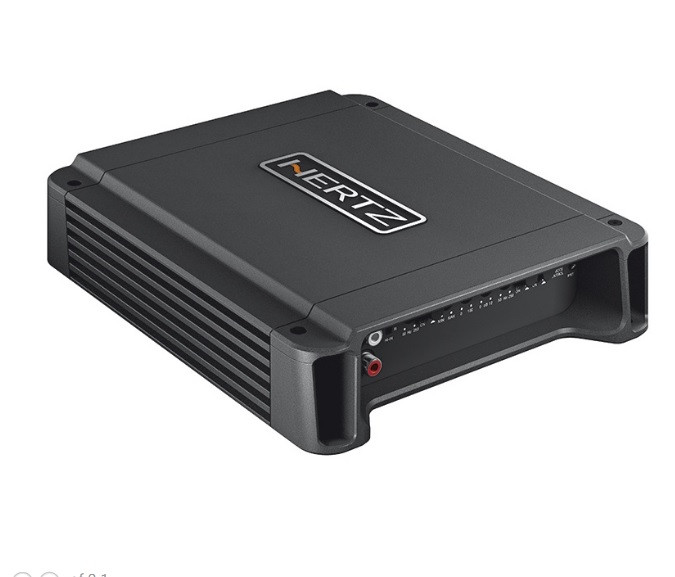

آمپلی فایر مونو هرتز Hertz HCP1 D

آمپلی فایر مونو هرتز Hertz HCP1 D

آمپلی فایر مونو شرکت هرتز مدل HCP1 D

Hertz HCP1 D

حساسیت : 100 دسیبل

RMS توان اسمی در مقاومت 2 اهم : 700 وات

RMS توان اسمی در مقامت 4 اهم: 380 وات

Load impedance: 2Ω

Amplifier stage

Preout Hi-Pass: 50 ÷ 250 Hz @ 12 dB/Oct.

Remote Volume Control (adjust): (-50 ÷ 6) dB

S/N Ratio (A weighted @ 1 V): 100 dB

Output Power (RMS) @ 14.4 VDC, THD 10%:

1 Ch: 380 W x 1 (4 Ω)

Distorsion - THD (100 Hz @ 4Ω): 0.2 %

INPUTS: PRE IN / SPEAKER IN

Pre-In sensitivity: 0.6 ÷ 5 V RMS

1 Ch: 700 W x 1 (2 Ω)

PHASE (adjust): (0 ÷ 180) deg

Bandwidth (-3 dB): 10 ÷ 22 kHz

Pre-In impedance: 15 kΩ

Filters FULL: Yes

BOOST 50 Hz (adjust): (0 ÷ 12) dB

Power supply voltage: 11÷15 VDC

Damping factor (100 Hz @ 4Ω): 80

Idling current when off: 1 A/0.04 mA

Remote In: 7 ÷ 15 VDC - 1 mA

Lo-Pass: 50 ÷ 250 Hz @ 24 dB/Oct.

Speaker-In sensitivity: 1.5 ÷ 12 V RMS

Consumption @ 2Ω, 14.4 VDC (Max Musical Power): 25 A

ART: Automatic Remote Turn-On/Off with Speaker-In
